Information

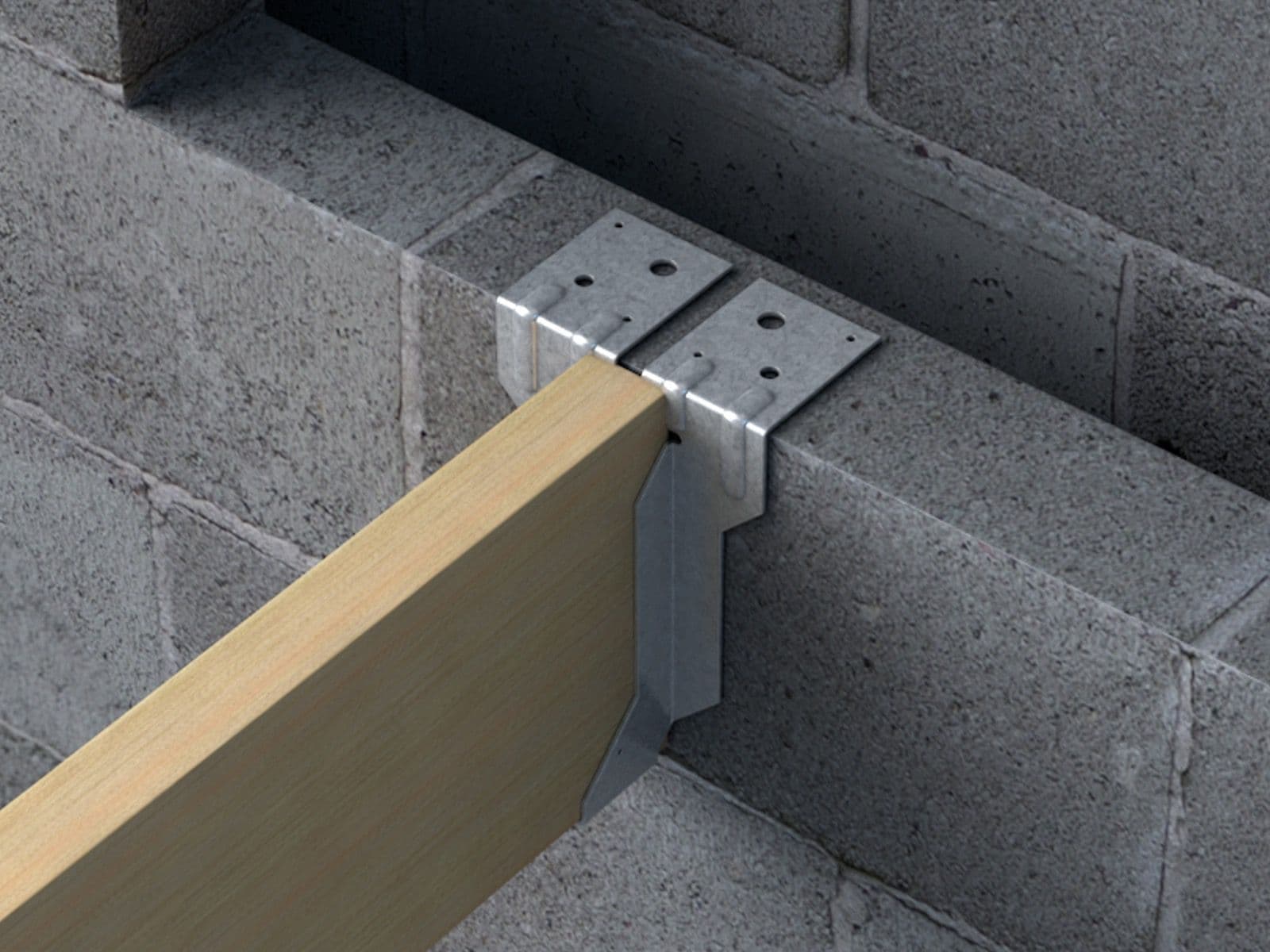

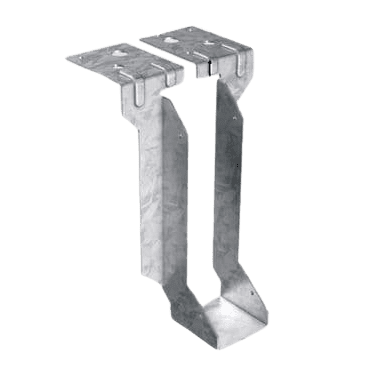

The standard hanger is designed for building into brickwork or blockwork. Heavy Duty. Suitable for timber width of 47mm and timber depth of 200mm. Manufactured from 2.0mm thick pre-galvanised steel to BS EN 10346:2009, S280. Wide top flange design offers increased loading capacity on masonry with a minimum crushing strength of 3.5N/mm². 75mm bearing surface and pre-punched side gusset to allow nail fixing into timber joists with 30 x 3.75mm Sheradised square twist nails.
Specifications
-
GTIN:5060138582859
-
MPN:SMH/S/47x200
-
Brand:Vista Engineering
-
Product Code:170253
-
Weight:0.603kg
